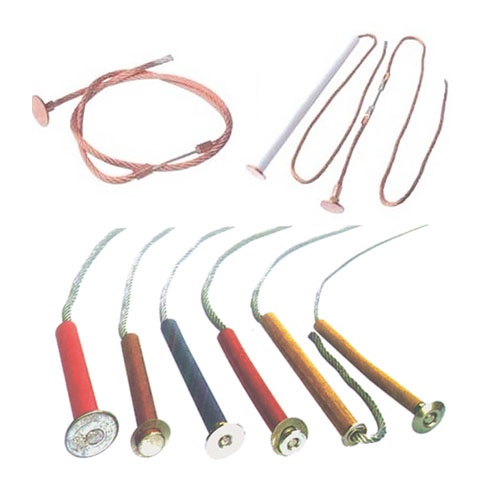

expulsion fuse link

 KB、KU、KS” type expulsion fuse link belong to“K”and “T”type fuses, it has general type,universal type and screw type available according to IEC-282 standard. The product drop-out type fuse of 11~36V grade.And they have two types,one is Removable button head,and another one is Movable button head.

Technical Particulars:

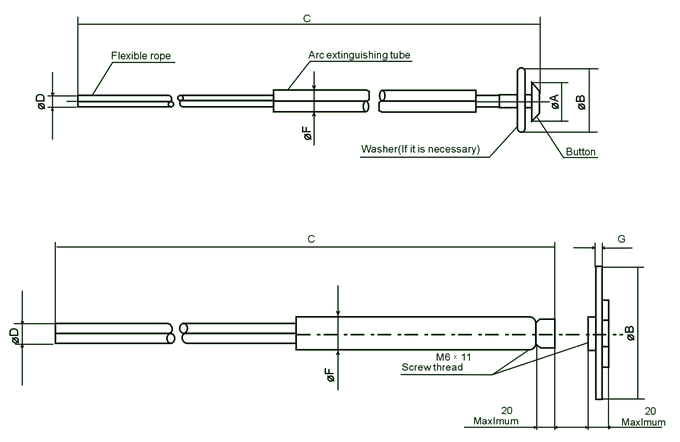

Rated Current(A)	Dimension(mm)					Quantity/carton
	A	B	C	D	F
1 (to)25	12.5 ± 0.2	19.0 ± 0.2	(Note)1	2.0	6.5	500
30 (to)40	12.5 ± 0.2	19.0 ± 0.2	(Note)1	3.0	8.0	500
50(to)100	19.0 ± 0.3	（Not applicable)	(Note)1	5.0	10.0	250
140(to)200	19.0 ± 0.3	（Not applicable)	(Note)1	7.0	12.0	150
