HRC fuse
![HRC fuse](../pic/big/27_0.jpg)
HRC Low Voltage Fuse:
Features
1,According to IEC60269,DIN43620,GB13539 and CE safety,ROHS certificate.
2,Rated voltage:AC500V/690V or DC 440V
3,Rated Current:2A~1250A
4,Exception: Size 00 with DC250v
5,Operating Class:
-gL/gG for cable and conductor protection
-Am for motor protection
-aR for semiconductor protection
6,Finely graduated selectivity
7,Rated Breaking capacity: AC120kA(Size 00:AC 50kA)

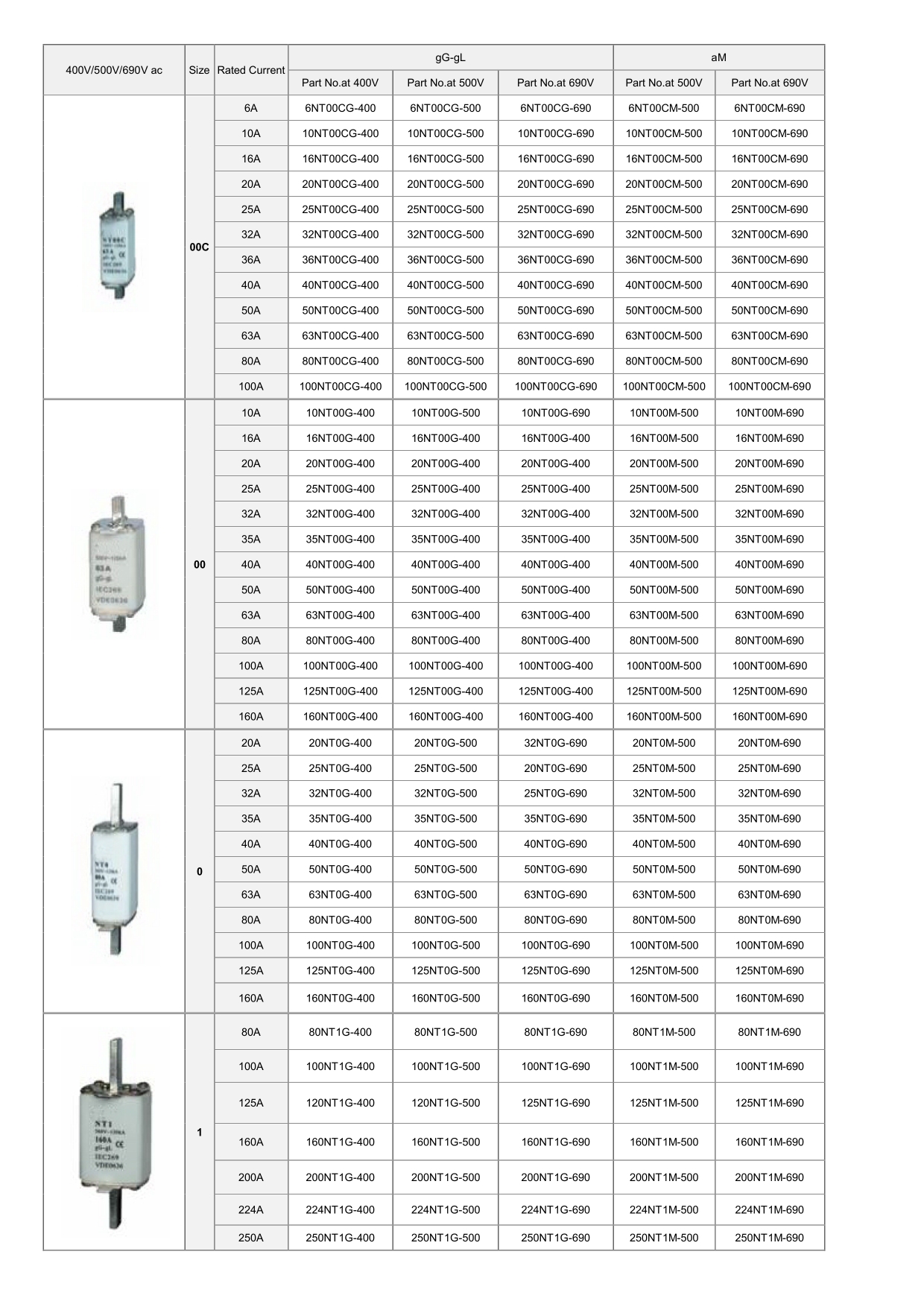

![](/pic/other/2014-10-29-10-42-254.jpg)

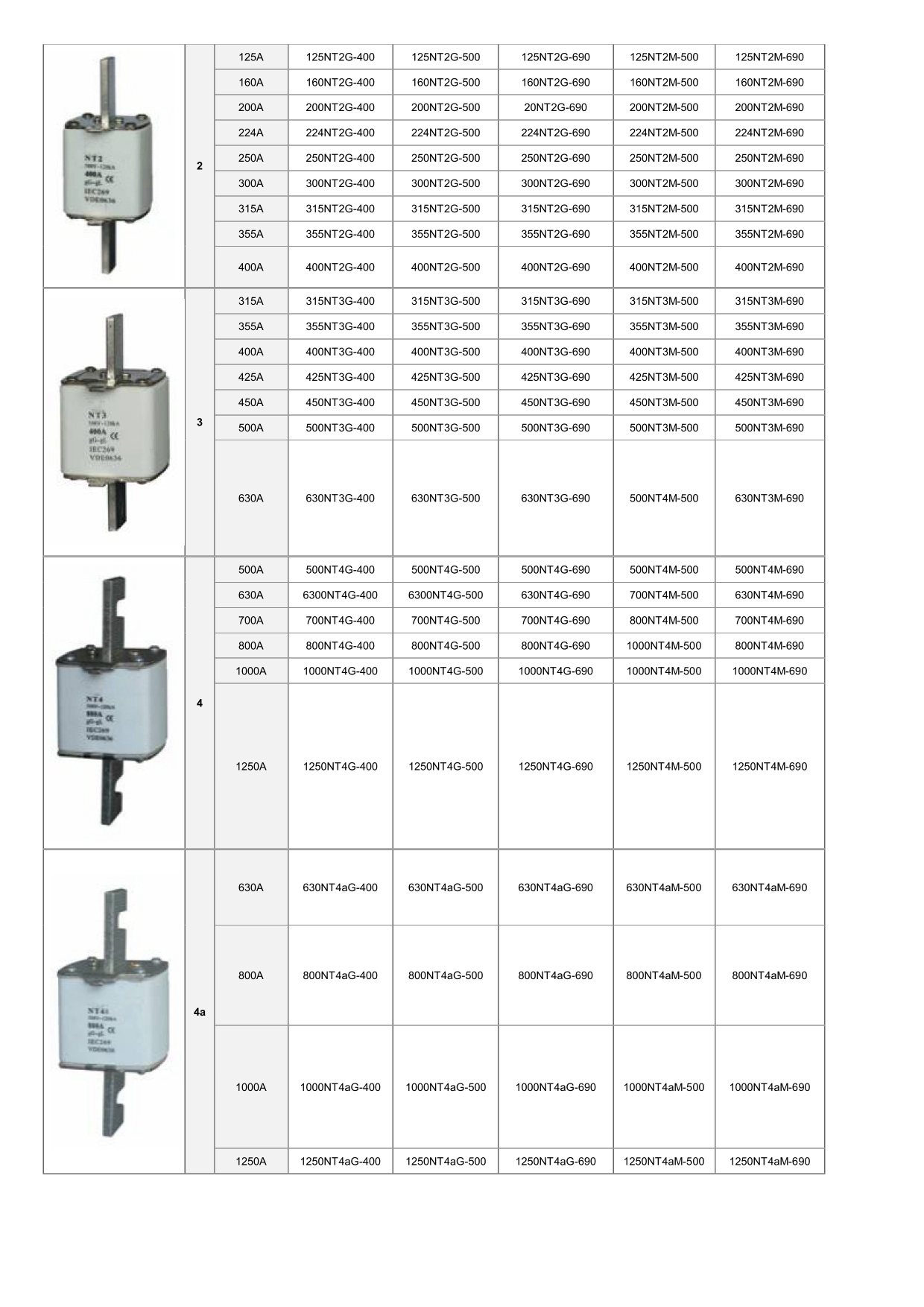

![](/pic/other/2014-10-29-10-48-287.jpg)
